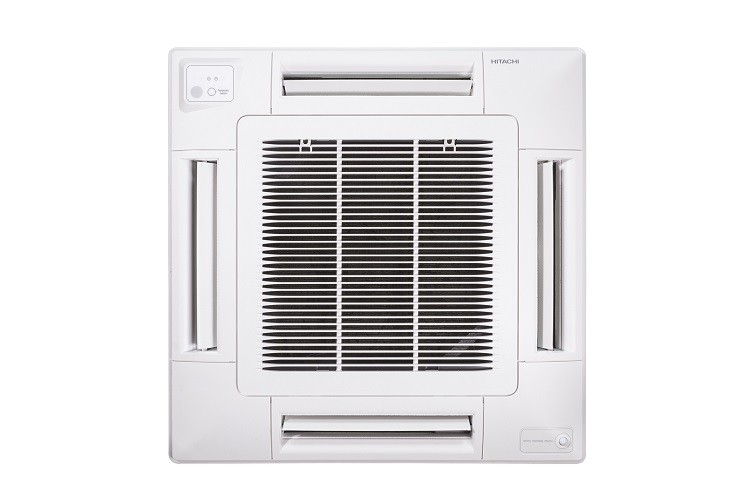

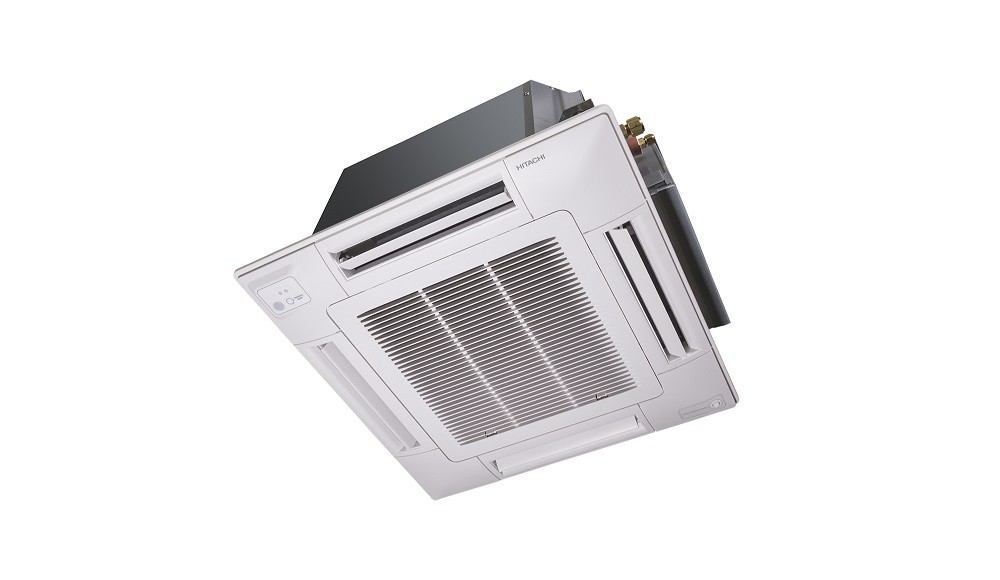

– CASSETTE RAI

For the most effective air distribution

– Flexible air flow

The unit delivers excellent coverage with a wide distribution of air, making it ideal for use in large spaces.

Individual louvre control directs the air wherever its required for maximum comfort.

– Eco-friendly high performance

The unit uses environmentally friendly R32 refrigerant deliverying SEER up to 6.50 for A++ Energy ratings and lower running costs.

– Motion detection

Units come with motion detectors as standard which automatically switches to eco mode when no people are detected and then switches back to standard mode when someone enters the room.

Lowers running costs and increases energy efficiency.

– Custom control

– Outdoor Units

Light Commercial Cassette

RAI-25RPE	RAI-35RPE	RAI-50RPE	RAI-60RPE

Nominal Capacity (min - max)	Cooling	KW
Nominal Capacity (min - max)	Heating	KW

Seasonal energy rating	Cooling
Seasonal energy rating	Heating

SEER

SCOP

EER - COP (Cooling/heating energy label)

Sound Pressure (very low - low - med - high)	Cooling	dB(A)
Sound Pressure (very low - low - med - high)	Heating	dB(A)

Sound Power (Eurovent data)

dB(A)

Air flow (very low - low - med - high)	Cooling	m3/h
Air flow (very low - low - med - high)	Heating	m3/h

Diameter of pipes (liquid-gas)

Inches

Condensate drain diameter

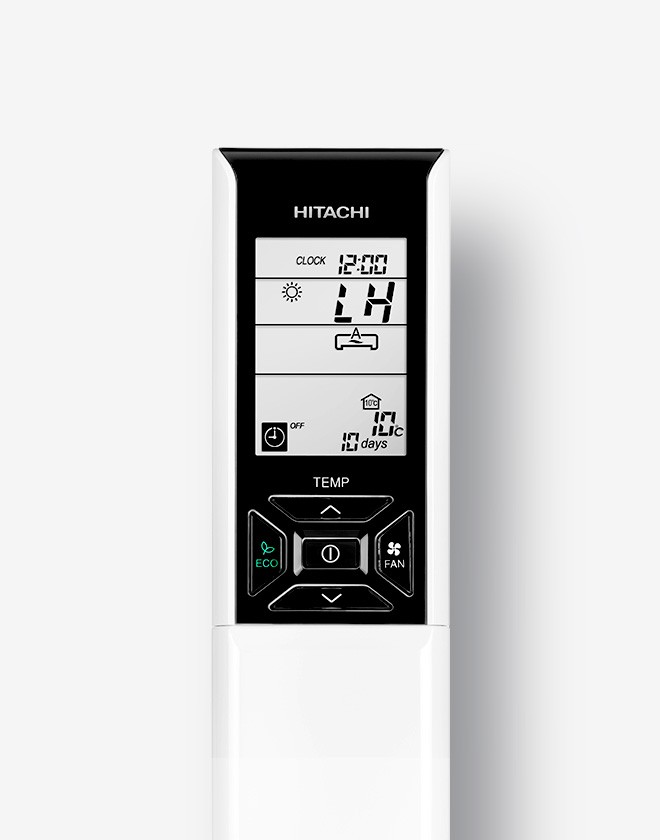

Remote control (standard)

Programming

Dimensions	Height	mm
	Width	mm
	Depth	mm

Cassette panel dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

2,50 (0,90-3,00)
3,50 (0,90-5,00)
A++
A+
6.20
4.30
4,20-4,00 (A/A)
27-31-35-38
28-32-36-39
54
360-505-590-660
444-540-630-720
1/4 - 3/8
32
Eco Control
24h / 7 day
285
570
570
30
620
620
20

3,50 (0,90-4,00)
4,80 (0,90-6,60)
A++
A+
6.50
4.30
4,00-3,90 (A/A)
27-33-37-40
28-34-38-41
56
360-505-590-660
444-540-630-720
1/4 - 3/8
32
Eco Control
24h / 7 day
285
570
570
30
620
620
20

5,00 (1,20-5,80)
6,00 (1,20-6,80)
A++
A+
6.20
4.40
3,52-3,82 (A/A)
29-35-39-43
30-36-40-44
56
390-540-630-720
450-600-690-780
1/4 - 1/2
32
Eco Control
24h / 7 day
285
570
570
30
620
620
20

6,00 (1,20-6,50)
7,00 (1,20-6,50)
A++
A+
6.20
4.40
3,51-3,80 (A/A)
29-35-39-43
30-36-40-44
56
390-540-630-720
450-600-690-780
1/4 - 1/2
32
Eco Control
24h / 7 day
285
570
570
30
620
620
20

Outdoor Units

RAC-25NPE	RAC-35NPE	RAC-50NPE	RAC-60NPE

Power feed

Power consumption (min - max)	Cooling	KW
Power consumption (min - max)	Heating	KW

Sound Pressure	Cooling	dB(A)
Sound Pressure	Heating	dB(A)

Sound Power

dB(A)

Airflow	Cooling	m3/h
Airflow	Heating	m3/h

Diameter of pipes (liquid-gas)

Inches

Maximum pipe length

Maximum piping elevation (between IDU & ODU)

Refrigerant charge / (Pre-charged length)

kg (m)

Refrigerant

Compressor

Dimensions	Height	mm
	Width	mm
	Depth	mm

Weight

220-240V, 1Ph, 50Hz
0,60 (0,25-1,29)
0,88 (0,25-1,50)
48
49
61
1920
1620
1/4 - 3/8
20
10
0,86 (20)
R32
Rotary
548
750
288
32.5

220-240V, 1Ph, 50Hz
0,88 (0,25-1,46)
1,23 (0,25-1,92)
48
49
61
1920
1620
1/4 - 3/8
20
10
0,86 (20)
R32
Rotary
548
750
288
32.5

220-240V, 1Ph, 50Hz
1,42 (0,30-2,50)
1,57 (0,30-2,65)
50
53
65
2160
2160
1/4 - 1/2
30
20
1,5 (30)
R32
2 Cylinder Rotary
750
850
298
50

220-240V, 1Ph, 50Hz
1,71 (0,30-2,60)
1,84 (0,30-2,65)
50
53
65
2160
2160
1/4 - 1/2
30
20
1,5 (30)
R32
2 Cylinder Rotary
750
850
298
50

Open table

Download PDF

– Documentation

Manuals, brochures and other product literature. If you need any more information, please get in touch.

IM - RAI RPE

IM - RAC 25 & 35 NPE

IM - RAC 50 & 60 NPE

Technical Catalogue - Light Commercial Cassette & Ducts

All downloads
