– Central Station Mini Test

The Central Station mini enables to monitor up to 160 indoor units / 32 remote control group. With its intuitive display and colorful touchscreen, it’s ideal for building managers and facility managers of small-scale venues.

– All useful controls are at hand!

The Central Station mini includes all the functionalities necessary for the daily management of air conditioning. From temperature to maintenance, users can see and control what’s happening inside their facility.

– Improve comfort inside the building

Select the target zones and turn on/off the indoor units, and adjust the temperature setpoint, fan speed, and airflow direction to your occupant’s needs. Central Station also displayed the room temperature (sensed at the indoor unit’s inlet) so you can identify the zones in need.

– Programmable AC operation schedule

Use the schedule functionality to meet your building’s business hours. Up to 10 slots can be set for each day of the week. You can pre-cool/pre-heat selected rooms before opening hours and make sure to turn off the AC during vacancy time.

– Supports filter cleaning maintenance

With the Central Station mini, facility managers always know when an air conditioning indoor unit requires filter cleaning. A filter symbol appears on the screen and indicates which indoor unit is concerned.

– Monitor errors and malfunctions

In case of malfunction, users are alerted with an alarm visual symbol. Error code and time can be accessed from the screen.

– Synchronize the AC with up to 6 external input/outputs

Connect a 3rd party equipment to the Central Station mini for a smarter building operation. 4 Inputs and 2 outputs ports are available on the back of the Central Station.

– Examples of connecting other building systems

• (Input) Energy metering device: : measures precisely the energy consumption of the air conditioning system
• (Input) Fire Alarm: fire alarm’s activation can trigger the AC system’s emergency stoppage and improve the building’s safety

– Easy installation via H-LINK

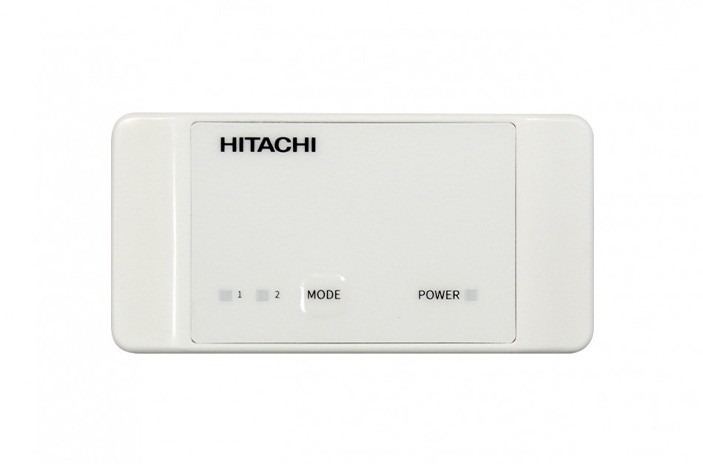

Connect the Central Station mini to Hitachi air conditioning equipment via the exclusive H-LINK communication system. It enables flexible wiring, connecting at any point of the system. H-LINK is the default for Hitachi VRF systems. Other types of Hitachi AC units can be connected using an H-LINK adapter*.

*Confirm compatibility and models with your Hitachi Cooling & Heating representative.

– OPTION: Install multiple Central Stations mini on one wall..

Instead of using one large centralized control system, some facility managers of big buildings may prefer to install several Central Station mini in their office.

See multiple Central Station (EZ model) in the Nippondaira Hotel - video here.

– … or one per floor

In other venues, one Central Station mini can be installed on each floor.

See one Central Station installed on each floor of North Kellyville’s Public School in Australia – video here.

– Other Benefits

5.0-inch color touchscreen

An intuitive color-code ease immediate understanding of each indoor unit’s operation status.

Adjustable display view

Too small or too big? Choose yours among 3-panel settings to see your preferred amount of details and text size on the screen.

Lock of room controllers

From the Central Station mini, you can lock entirely or partially the individual remote controllers of each room, to prevent misuse by building occupants

Display of sensed temperature

Central Station mini can also inform the temperature sensed at the outdoor unit’s air inlet (ambient air) as well as the indoor unit’s air inlet (room temperature)
